Bill of Materials

A bill of materials (BOM) is a comprehensive list of all the components, parts, raw materials, sub-assemblies, and quantities required to manufacture or assemble a finished product. It is a crucial document used in manufacturing, engineering, and supply chain management.

The BOM provides detailed information about each item needed to build the final product, including part numbers, descriptions, quantities, and sometimes additional specifications such as dimensions or materials. It serves as a reference for production planning, procurement, inventory management, and cost estimation.

The BOM typically includes both the parent items (the final product) and the child items (the components and sub-assemblies). It outlines the hierarchical structure of the product, indicating how the parts are organized and connected. Each level of the BOM represents a different level of assembly or sub-assembly.

The bill of materials is used throughout the product lifecycle, from initial design and prototyping to production, maintenance, and repair. It ensures that the correct parts are available when needed, facilitates cost analysis and pricing, supports accurate inventory management, and helps in identifying potential supply chain issues or bottlenecks.

With the advent of computer-aided design (CAD) and product lifecycle management (PLM) software, BOMs are often created, managed, and shared electronically, allowing for easier collaboration and revision control across different teams and departments involved in the manufacturing process.

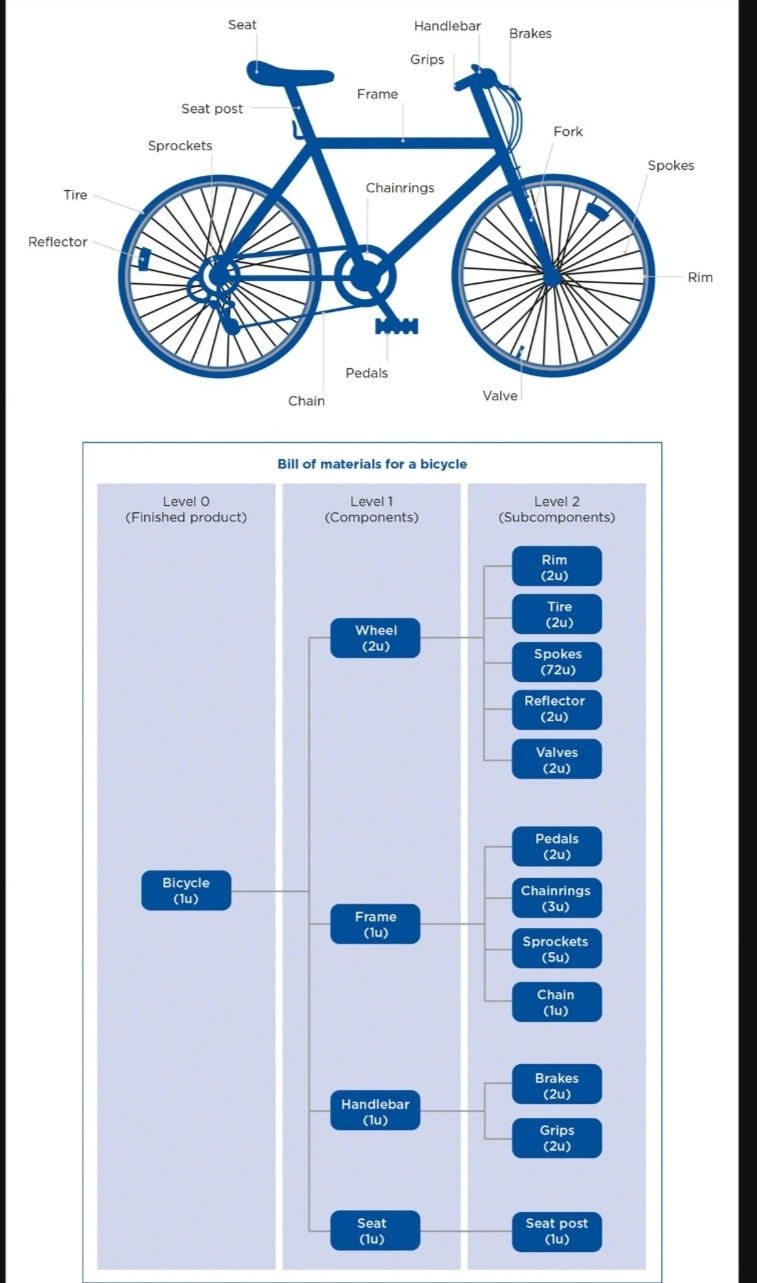

Example of BOM (Illustrative purposes only)

Product: Bicycle

Bill of Materials:

1.Frame

- Frame tube (quantity: 1) - Dimensions: 55cm x 28cm x 10cm

- Frame fork (quantity: 1) - Dimensions: 38cm x 9cm x 4cm

- Frame connectors (quantity: 4) - Dimensions: 5cm x 5cm x 2cm

- Frame decals (quantity: 1 set)

2. Wheels

- Front wheel (quantity: 1) - Diameter: 68cm

- Rear wheel (quantity: 1) - Diameter: 68cm

- Spokes (quantity: varies based on wheel type)

- Wheel rims (quantity: 2) - Dimensions: 68cm diameter

-Tires (quantity: 2) - Dimensions: 68cm diameter x 4cm width

-Inner tubes (quantity: 2) - Dimensions: 68cm diameter

3. Drivetrain

- Chain (quantity: 1) - Length: 110 links

- Chainrings (quantity: 2) - Diameter: 40 teeth, 30 teeth

- Crankset (quantity: 1) - Length: 17cm

- Pedals (quantity: 2)

- Cassette (quantity: 1) - Number of teeth: 11-34

- Derailleur (quantity: 1)

- Shifter (quantity: 1)

4.Brakes

- Front brake caliper (quantity: 1)

- Rear brake caliper (quantity: 1)

- Brake pads (quantity: 4)

5.Handlebars and Controls

- Handlebars (quantity: 1) - Length: 40cm

- Stem (quantity: 1) - Length: 10cm

- Grips (quantity: 2) - Length: 12cm

- Brake levers (quantity: 2)

- Shifters (quantity: 2)

Seat and Seatpost

6. Seat (quantity: 1)

- Seatpost (quantity: 1) - Diameter: 2.5cm, Length: 30cm

7. Accessories

- Kickstand (quantity: 1)

- Reflectors (quantity: varies)

- Bell (quantity: 1)

- Water bottle cage (quantity: 1)

Please note that the dimensions provided are for illustration purposes and may not accurately represent the dimensions of a specific bicycle model. The actual dimensions would depend on the design and specifications of the bicycle.
